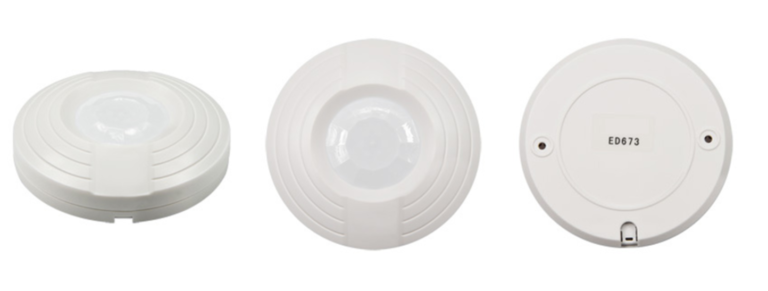

Surface Mount 360° PIR Ceiling Motion Sensor
MODEL: ED673
- Dual-element PIR motion sensor
- Auto temperature compensation technology
- Alarm indicator On/Off adjustable
- Power input protecting circuit design
- Normal close and Normal open alarm output
- Product dimension: 86mm x 25mm
- Working voltage: DC9-24V
- Working current: <=25mA
- Detection range: distance 6 meters/ angle 360 degree
- Anti-tamper: Normal close (NC)
- Alarm output: NC/NO
- LED indicator: ON/OFF
- Installation: ceiling mounted
- Installation height: 2.4-3.6M
- Working temperature: -10°C – 50°C
- Working humidity: <=95%
